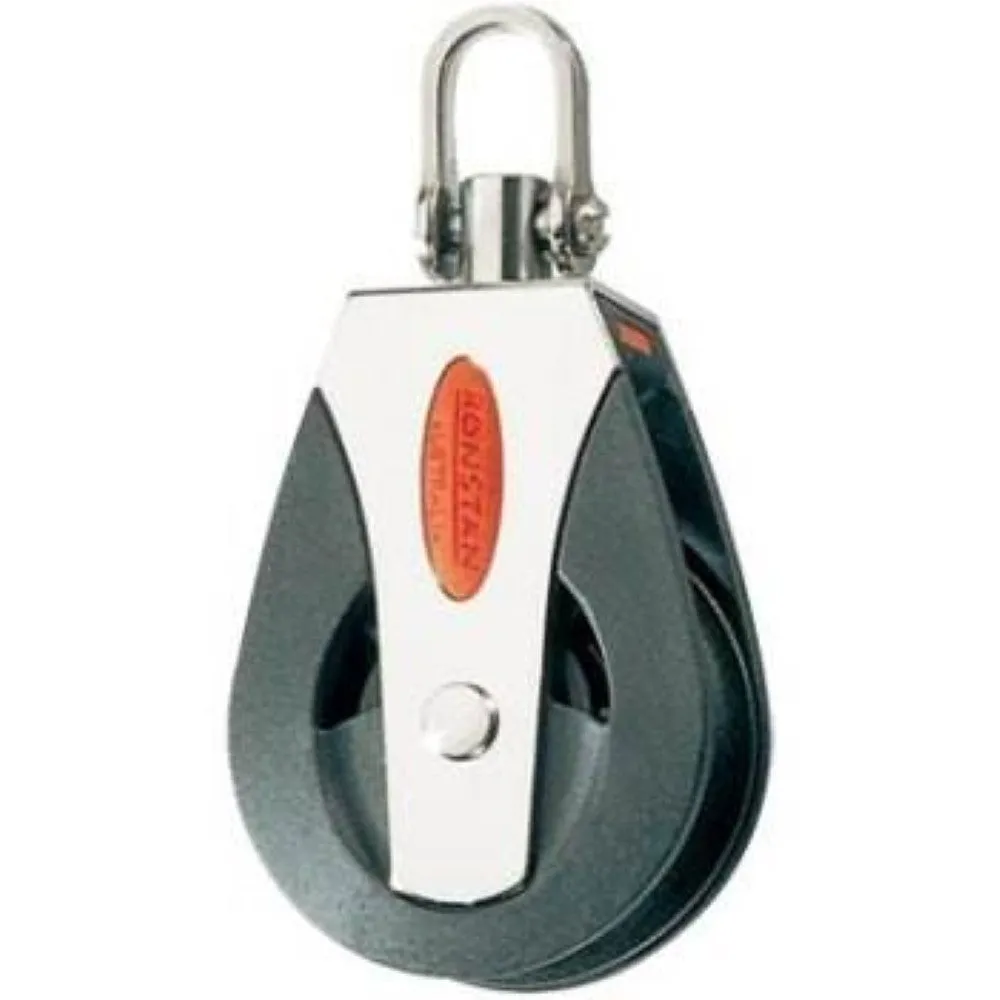

| Precision moulded Acetal sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range. Head can be locked at 0° or 90° by engaging the grub screw in either the 0 or 90 degree position. |
Applications:
- Mainsheet
- Spinnaker sheets
- Halyards and other primary applications on boats up to 10m (33ft)
Materials:
- Acetal ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
Features:
- Sheave Diameter - 50mm
- Maximum Rope Diameter - 12mm
- Pin diameter - 5mm
- Maximum working load - 500kg
- Breaking load 1500kg
- Weight 117g
